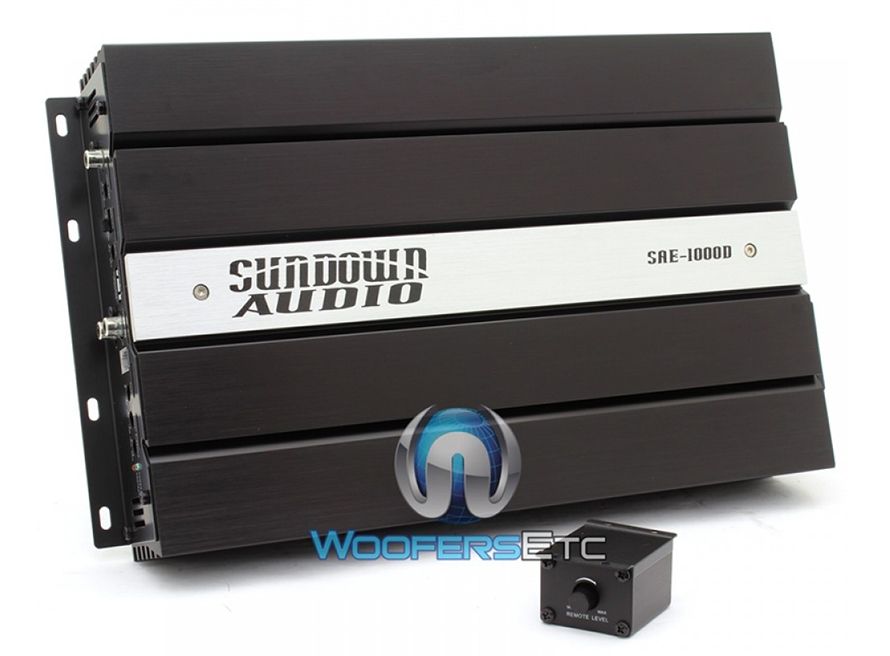

Sundown Audio SAE-1000D v2 Monoblock 1000W RMS Digital Class D Amplifier

The new Sundown SAE series is the result of over 3-years of testing to produce an extremely high quality, budget amplifier line for Sundown Audio. They began testing the boards in 2011 and finally released them in 2014 once we were fully satisfied with their performance and long-term reliability. They have consistently generated happy customers ever since. If you are looking to get into a Sundown Audio amplifier and don’t need a ton of power then this is the line for you.

The SAE line is built into a very similar heat-sink as Sundown's SCV and SAX model amplifiers so they can be used in the same install and remain cosmetically consistent.

Product Features:

• Digital Class-D Linkable Monoblock Amplifier
• Power Output (Tested Voltage 14.4 Volts):
• RMS Power 2-Ohms Linked: 2000W
• RMS Power 1-Ohm Mono: 1000W
• RMS Power 2-Ohm Mono: 500W
• RMS Power 4-Ohm Mono: 250W
• MOSFET PWM Power Supply
• 1-Ohm Stable Load
• 24dB/Oct - Variable Low Pass Filter
• 24dB/Oct - Variable Subsonic Filter
• 12dB/Oct - Variable Bass Boost
• 180 Degree Variable Phase Shift
• 4-Way Protection Circuit (Thermal, Voltage Speaker Short and DC Offset)
• Wired Remote Control
• Low Pass Frequency Crossover: 30Hz - 250Hz
• Subsonic Filter: 10Hz - 50Hz
• Bass Boost - 45Hz: 0-12dB
• Phase Shift Control: 0-180 Degree
• Frequency Response: 10Hz - 250Hz
• Input Sensitivity: 6 - 0.2 Volts
• Signal Noise Ratio: >100dB
• THD 4-Ohms: <0.5%
• Efficiency 4-OIhms: 86%
• Recommended Fuse Rating: 40A x 3
• Dimensions: 13.1" L x 8.5" W x 2.3" H
