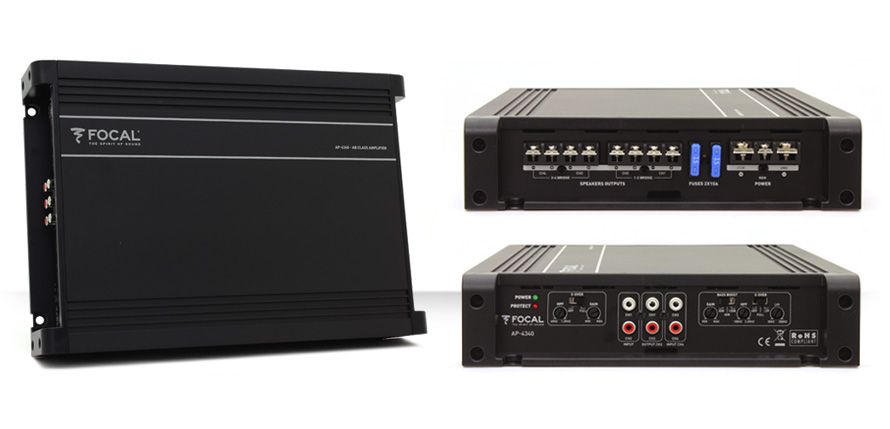

Focal AP 4340 4-Channel 280W Full Range Class A/B Amplifier
- SKU #: 01559
Focal AP4340 4-Channel 280W RMS Full Range Class A/B Amplifier
The AP-4340 4-channel class AB amplifier can be used in three modes: 4, 3 or 2-channel.
In 4-channel mode, its CEA power of 4 x 70W RMS will allow you to get the most from your Auditor kits installed up front and in the rear. The 3-channel mode enables you connect a kit to channels one and two, as well as an Auditor subwoofer to channels three and four in bridged mode for a CEA power of 190W RMS under 2 Ohms. The 2-channel mode, which consists of bridging channels 1-2 and 3-4, provides a CEA power of 2 x 190W RMS under 2 Ohms.
Equipped with high-pass and low-pass crossovers, as well as a subsonic crossover, the AP-4340 amplifier guarantees the optimal performance of the kits and subwoofers in this line.
Product Features:
- 4/3/2-Channel A/B Class Amplifier
- Aluminum chassis- High heat dissipation
- RCA inputs- After-Market headunit
- Crossover settings- Low-pass/High-pass, Bass boost adjustment
- Bridgeable
- Stable under 2Ω
Specifications:
- CEA Power (4Ω): 4 x 70W RMS
- Max power (2Ω): 4 x 95W
- Max power (Bridged 4Ω): 2 x 190W
- High-pass Crossover (Ch 1-2): 60Hz – 1.2kHz
- High-pass Crossover (Ch 3-4): 100Hz – 2.2kHz
- Low-pass Crossover: 50 – 250Hz
- Full range mode
- Bandwith: 10Hz- 30kHz
- Dimensions: 13-25/64″ x 2″ x 9-1/4″ (340x50x235mm)
