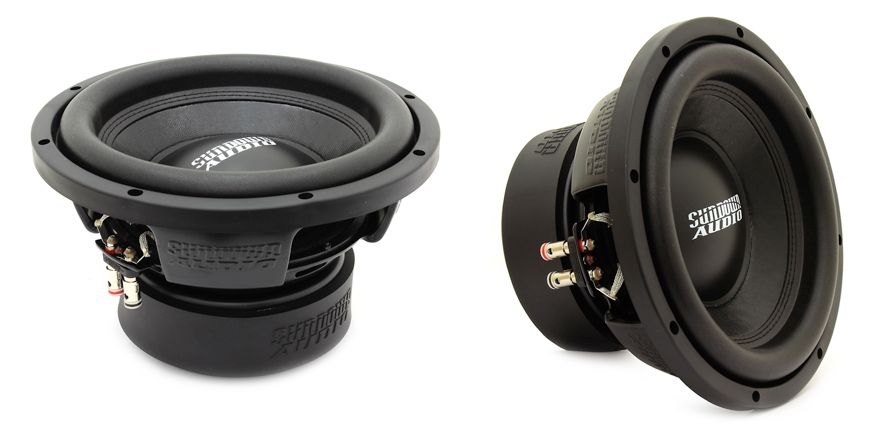

Sundown Audio E-10 D4 v.4 10" 500W RMS Dual 4-Ohm E Series Subwoofer
- SKU #: 00742
Sundown Audio E-10 D4 v.4 10" 500W RMS Dual 4-Ohm E Series Subwoofer
The fourth version of our acclaimed E series is all new for 2021. Since we introduced the first E series in 2012 we have sought to push the limits of entry-level woofers forward. Typical entry level woofers are highly limited in terms of linear excursion, mechanical ruggedness, and thermal performance - all of these bars have been raised once again for our third generation E series.
The new stamped steel frame is also significantly stronger than previous generation E series woofers and features an enhanced Sundown style” high pressure vented spider landing. Working in conjunction with a motor ventilation system based on our SA series & the new, larger voice coil the third generation E series possesses thermal capacity unheard of in this class of subwoofer.
Bottom-line; if you are looking for a great subwoofer option and do not want to break the bank the Sundown E-Series woofers are for you and these are the best E series made to date. They are ideal for anyone from beginners to seasoned professionals seeking industry leading performance at a value price point.
Product Features:
- Sundown Audio E-10 D4 v.4 10" 500W RMS Dual 4-Ohm E Series Subwoofer
- Power Handling:
- RMS = 500 watts
- Xmax = 14mm one-way by 70% BL
- Vented magnetic gap
- Vented pole piece with optimized geometry
- Black Aluminum 2.5" voice coil former for superior heat dissipation
- High Temperature 4-Layer copper voice coil wire
- Spring Loaded Terminals
- Stitched-On Mini-XL Tinsel Leads to prevent fatigue and failure
Box Recommendations:
- Sealed: 0.5 cu ft
- Ported: 1.0 cu ft
- Displacement: 0.11 ft^3
- Cutout Diameter: 8-7/8"
- Outside Diameter: 10"
- Depth: 5 5/8"
- Recommended Tuning: 32hz
- Recommended Port Area: 16 in^2
DC Resistance (Re) | Ω | 6.1 |
---|---|---|
Resonance Frequency (Fs) | Hz | 33.5 |
Equivalent Volume (Vas) | L | 18.8 |
Electrical Q Factor (Qes) | 0.43 | |
Mechanical Q Factor (Qms) | 4.39 | |
Total Q Factor (Qts) | 0.39 | |
Force Factor (BL) | NA | 23.5 |
Moving Mass (incl. Air Load) (Mms) | g | 183.7 |
Suspension Compliance (Cms) | mm/N | 0.12 |
Sensitivity | 1w / 1m | 84 dB |
Sealed Enclosure Suggestion | cu. ft. | 0.5 |
Ported Enclosure Suggestion | cu. ft. | 1.0 |
Displacement | cu. ft. | 0.11 |
Depth | in | 5.625 |
Outside Diameter | in | 10 |
Cutout | in | 8.875 |
Recommended Tuning | Hz | 32 |
Recommended Port Area | sq. in | 16 |
Additional Information
In the words of our customers
- PORTED!
-
by twalker on 3/25/2016I've put this sub in both sealed and ported and it's a no brainier....PORTED! This sub thumps.
-
