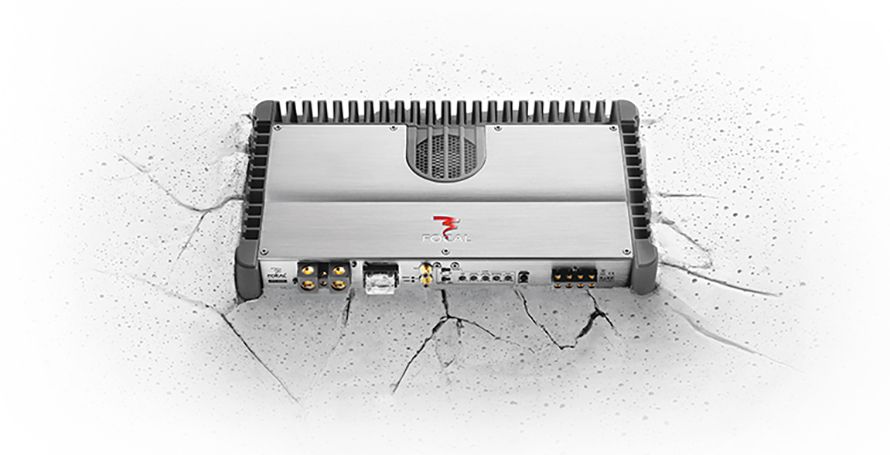

Focal Monoblock FPS 3000 1500W RMS Class D Car Amplifier
- SKU #: 90900
Focal Monoblock FPS 3000 Class D Power Amplifier
Product Features:
- Focal Monoblock FPS 3000 Class D Power Amplifier
- Power Handling:
- Power RMS- 14.4V 4-Ohm - THD+N < 1% 100Hz: 590W
- Power RMS- 14.4V 2-Ohm - THD+N < 1% 100Hz: 1000W
- Power RMS- 14.4V 1-Ohm - THD+N < 1% 100Hz: 1500W
- Class D technology (improvement of efficiency, power/size ratio and thermal characteristics)
- Aluminum alloy dissipation basket with T fins to ensure optimized ventilation and reduce overheating risks (a common issue with mono-channel amplifiers)
- High tech design (component structure and choice) to push back the limits of the cut-off and thus provide maximum power for the longest time possible.
- Progressive controlled cooling system: Regulates the amplifier temperature
- Mosfets (IRFP250N): Audiophile and powerful
- Direct mode: The audio signal is directly amplified
- Low-pass crossovers: Adjustable from 50Hz to 500Hz
- Pseudo-balanced input: No parasite
- Controlled cooling system: Air flow control
- Safety terminal: Cable and sheath complete integration
- Rubber pads in the corners: Damping of vibrations
- High bass quality, Full Mosfet, Very high power, Stable into 1 Ohm, Remote Control
Product Specifications:
- Frequency Response (-1dB in Direct Mode): 10Hz - 2.5KHz
- Signal/Noise Ratio (@CEA Power): 93dBA
- Distortion (4-Ohms @ 100Hz with lo-pass 22KHz): < 0.2% from 3W to 400W
- Damping Factor (4-Ohms @ 100Hz): 300
- Input Impedance: 47 KOhms
- Input Sensitivity: 0.2V - 4.6V
- Low-Pass Filter: 50Hz - 500Hz
- Subsonic Filter: Variable from 20 to 50Hz (24dB/oct.) with bypass
- Direct mode: Yes
- Adjustable bass boost: 0/+9dB linear
- Bass boost central frequency: 45Hz
- Variable phase (SUB): 0-180º linear
- Remote Control: yes
- Maximum cross section of power cable: 107 sq. mm. / 0000 AWG
- Idle Current: 2.2A
- Fuses: 2 x 80A
- Protections: Short-circuit, Overheating (80ºC), Soft clipping, Overvoltage, Reversal polarity
- Low Noise Ventilation System: Yes (Auto turn on at 50ºC)
- Dimensions: 2.3" (59mm) x 16.88" (429mm) x 10" (254mm)
