SAZ-1000D - Sundown Audio 1000W 1-Channel Monoblock Amplifier

  • SKU #: 80255
  • NewNew

Special Price $399.99

Retail: $499.99

($100.00 savings)

Availability: In Stock

Condition: Brand New
Shipping: Free Shipping

Special Price $399.99

Retail: $499.99

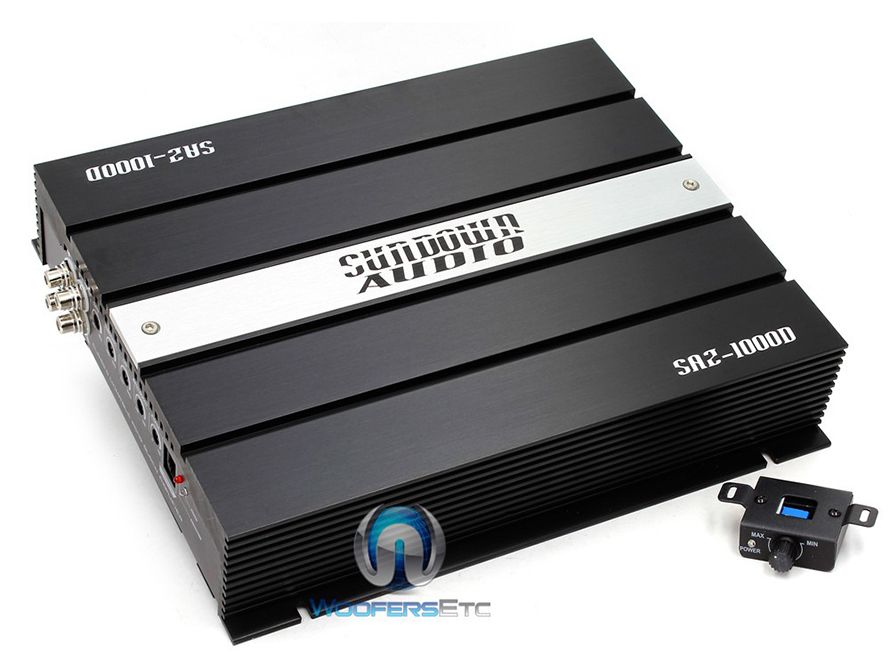

SAZ-1000D - Sundown Audio 1000W 1-Channel Monoblock Amplifier

Click to view larger image
 Description:


The SAZ-1000D is Sundown's most compact Class-D amplifier and can fit almost anywhere. Don't let the small size fool you as this amplifier packs 1000-watts RMS into a tiny package only 11.5 inches long.  "1000 watt" amps are a dime a dozen, so what's the differene between them all?  For starters, Sundown amps aren't tested on "musical" or "dynamic" output, which only measures the amp's ability to output bursts of RMS power.  All Sundown amps are "Load tested" which means they're forced to produce rated power against a constant resistance, without exceeding their temperature or distortion target.  The result is a surplus of high quality power that'll keep your subs happy, whole those other amps are heating up and clipping.

 Features:

  • Digital Class-D Linkable Mono Block Amplifier
  • Double Sided Through Hole Epoxy PCB
  • 1 Ohm Stability - Load tested
  • Efficiency : 86% @ 4 ohm, at 100Hz
  • 24dB/Oct Variable Crossover
  • Multi-Way Protection Circuitry (Thermal/Over Current/Speaker Short/Speaker DC Protection)
  • RCA Line Input and Master Output
  • 24dB Octave Crossover Slope
  • Variable Subsonic Filter
  • Variable Bass Boost
  • Variable Low Pass Filter
  • Variable Phase Shift
  • Four(4) Gauge Power Supply Connectors
  • Tested Voltage & THD : 14.4V & Less than 1% THD
  • Operating Voltage : DC 10V~16V
  • Wired Remote Controller
 Specifications:


Rated Power Output:

  • RMS power, 2 ohm linkable/dual mono: 1800W x 1CH
  • RMS power, 1 ohm mono: 1000W x 1CH
  • RMS power, 2 ohm mono: 600W x 1CH
  • RMS power, 4 ohm mono: 300W x 1CH
  • Signal to Noise Ratio: >90dB
  • Low pass frequency crossover: 35Hz~300Hz
  • Subsonic filter: 10Hz~60Hz
  • Bass boost @ 45Hz: 0~18dB
  • Phase shift control: 0~180 degree
  • Frequency response: 10Hz~350Hz (+/- 1dB)
  • T.H.D @ 4 ohmL: <0.1%
  • Efficiency @ 4 ohm: 86%
  • Fuse rating: 25A x 3
  • Input Sensitivity: 200mV to 6V (+/- 5%)
  • Dimensions: 252(W) x 58(H) x 294(L)mm
