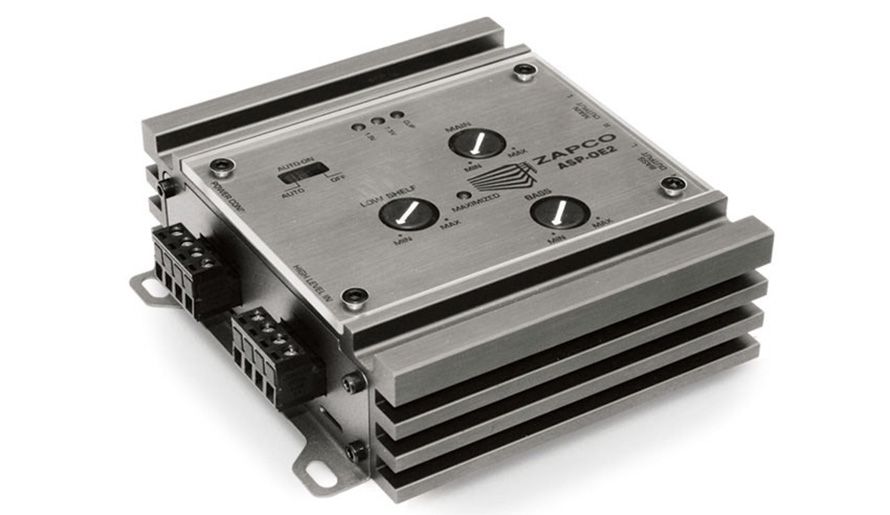

Zapco ASP-OE2 OEM 2/4 Channel Signal Level Converter

It’s difficult at best to change many factory head units. In addition there are any number of features and functions that are hampered or lost if the factory head unit is removed. The ASP-OE2 is an OEM adaptor designed for superior sound quality, with top end internal parts and Zapco’s custom built high precision pots. It is an active device including the line converter and a signal line driver that puts out 9.5V RMS and 14V peak signal voltage. With the ASP-OE2 your system will sound every bit as good with the factory head unit as it would with an aftermarket head unit.

Recovery: If you are driving a fairly new car, you’re probably noticed that when you turn up the volume of the system the bass seem to drop out. That’s because the auto makers are actively equalizing your system. They do think to protect the the factory speaker from the damage when you crank up the volume. Well, even when you add amplifiers and speakers to the car, that factory head unit will still pull out the bass frequencies when you turn up the volume.

One way to avoid the bass loss to leave the volume range of the head unit low and turn the gains of the amps way up. That way the head unit does not know how loud the system is. This does terrible things to the sound. You can go here and we explain all about the factory roll-off and how the ASP-EO2 cures it. But for now, the important thing is that the OE2 can seamlessly put the bass back in the system regardless of the head unit volume control.

Product Features:

• 2/4 Chanel out line driver at 9.5 Volts RMS, 14 Volts peak
• Distribution preamp configurable for 2, 4, or 6 channels of input
• 2-Channels input / 4-Channels output
• Balanced/unbalanced inputs
• Remote power supply
• Selectable ground reference
• Remote for channels 5/6
• Illuminated logo/cover plate
• THD: 0.01%
• S/N: 110dB
• Stereo Separation: 90dB
• Preamp Output: 9.5V / 14V Peak
• Dimensions: 4.0 inches L x 4.6 inches W x 1.5 inches H (102mm x 119 x 39)
